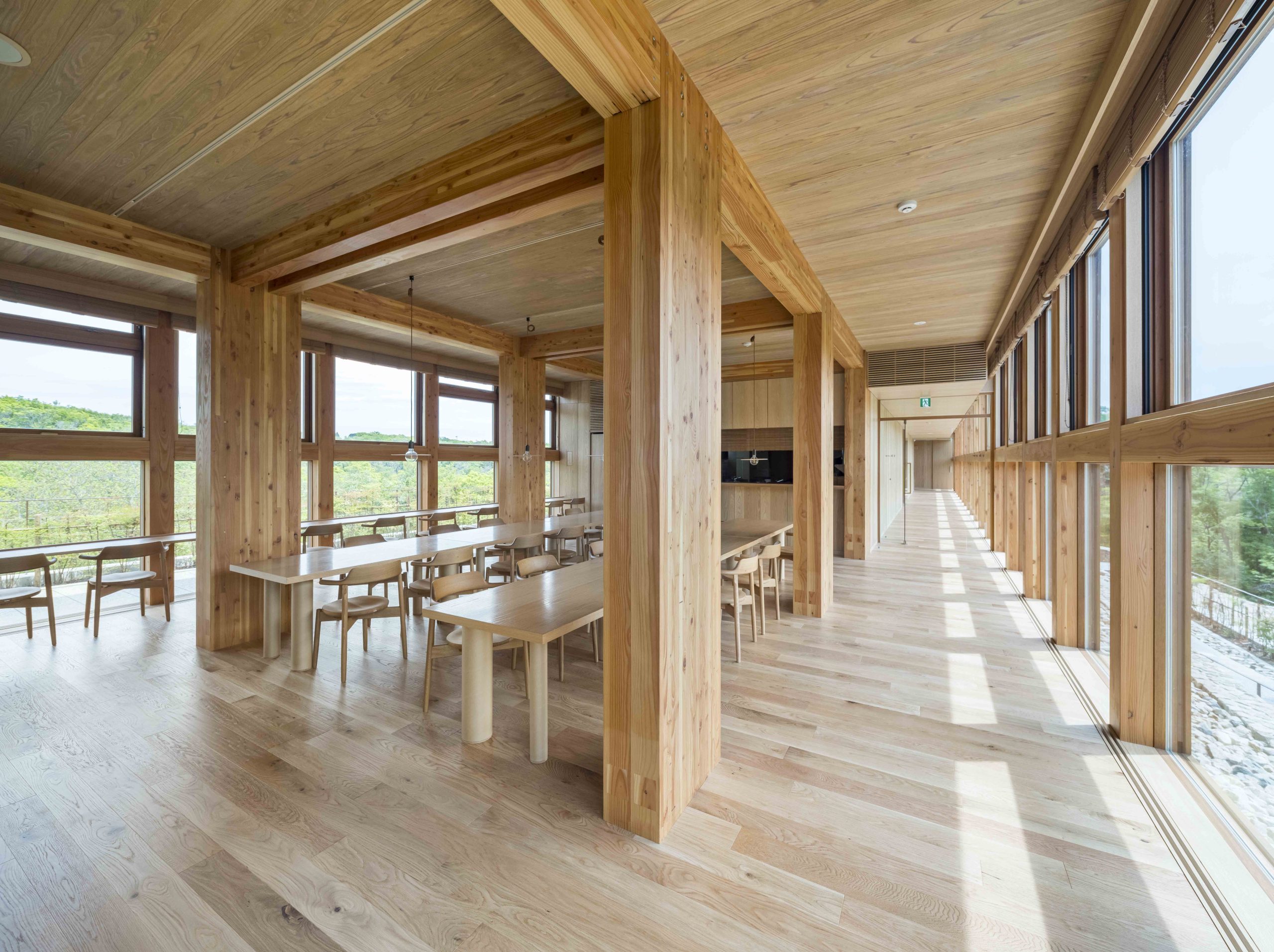

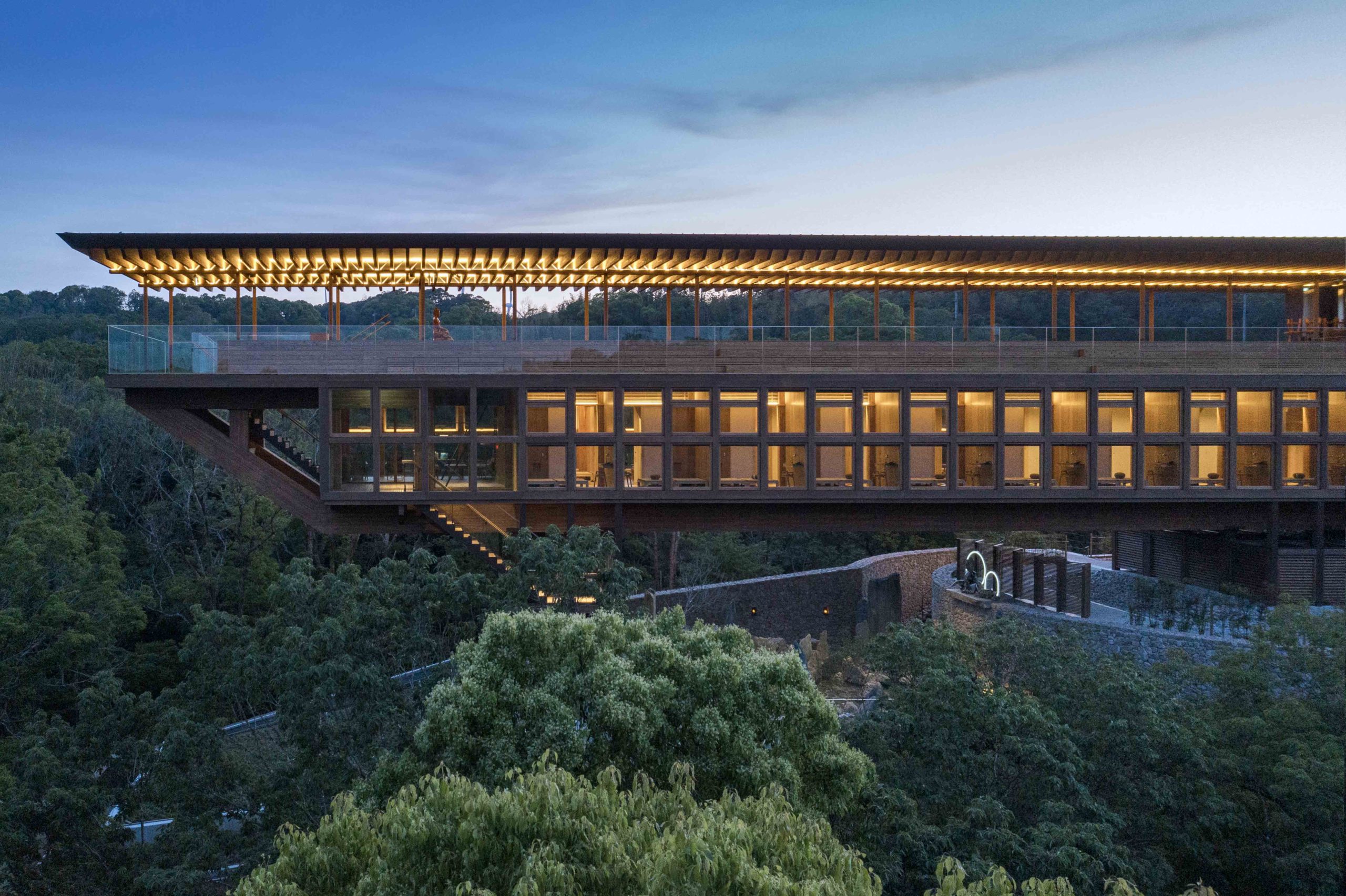

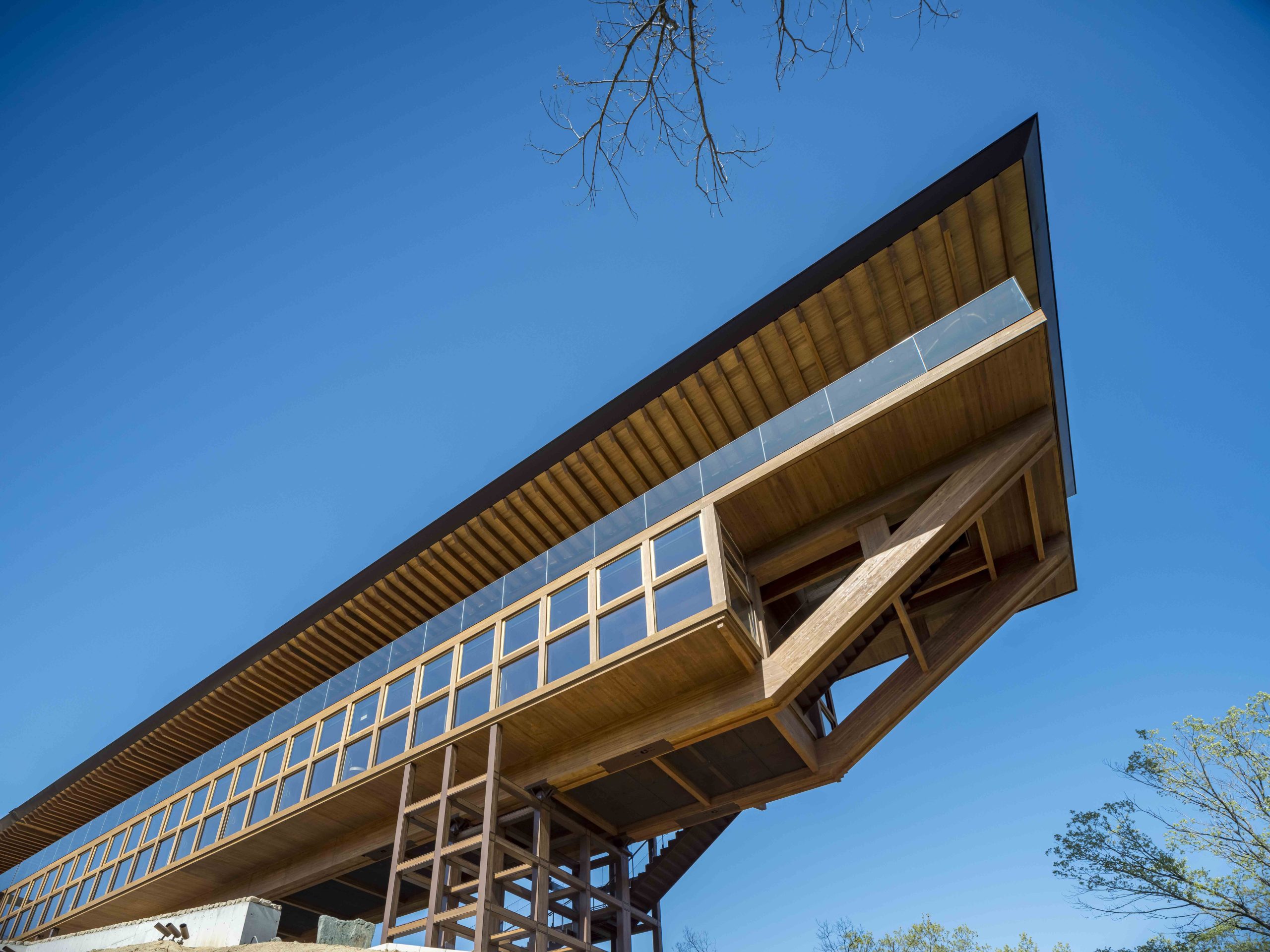

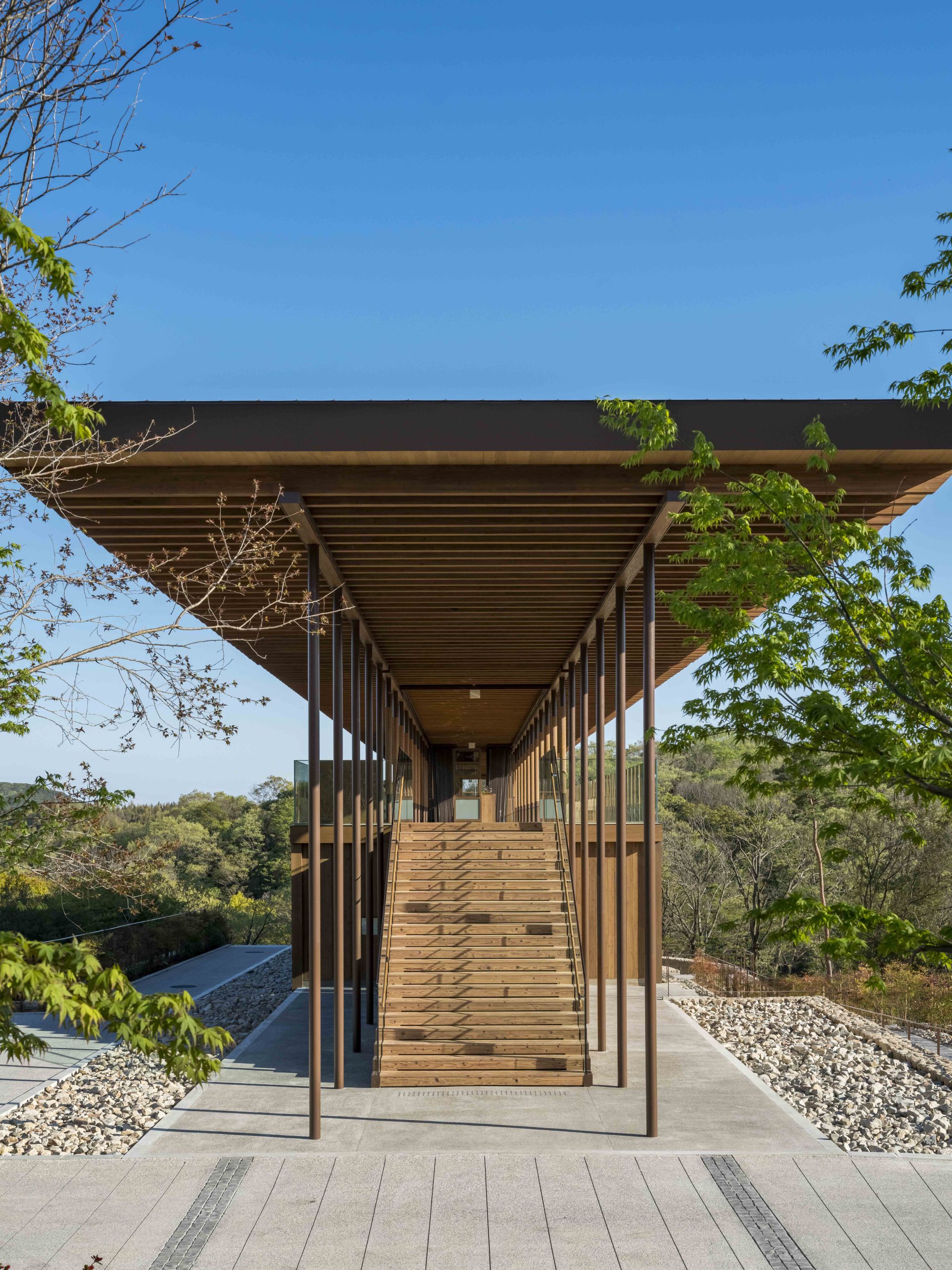

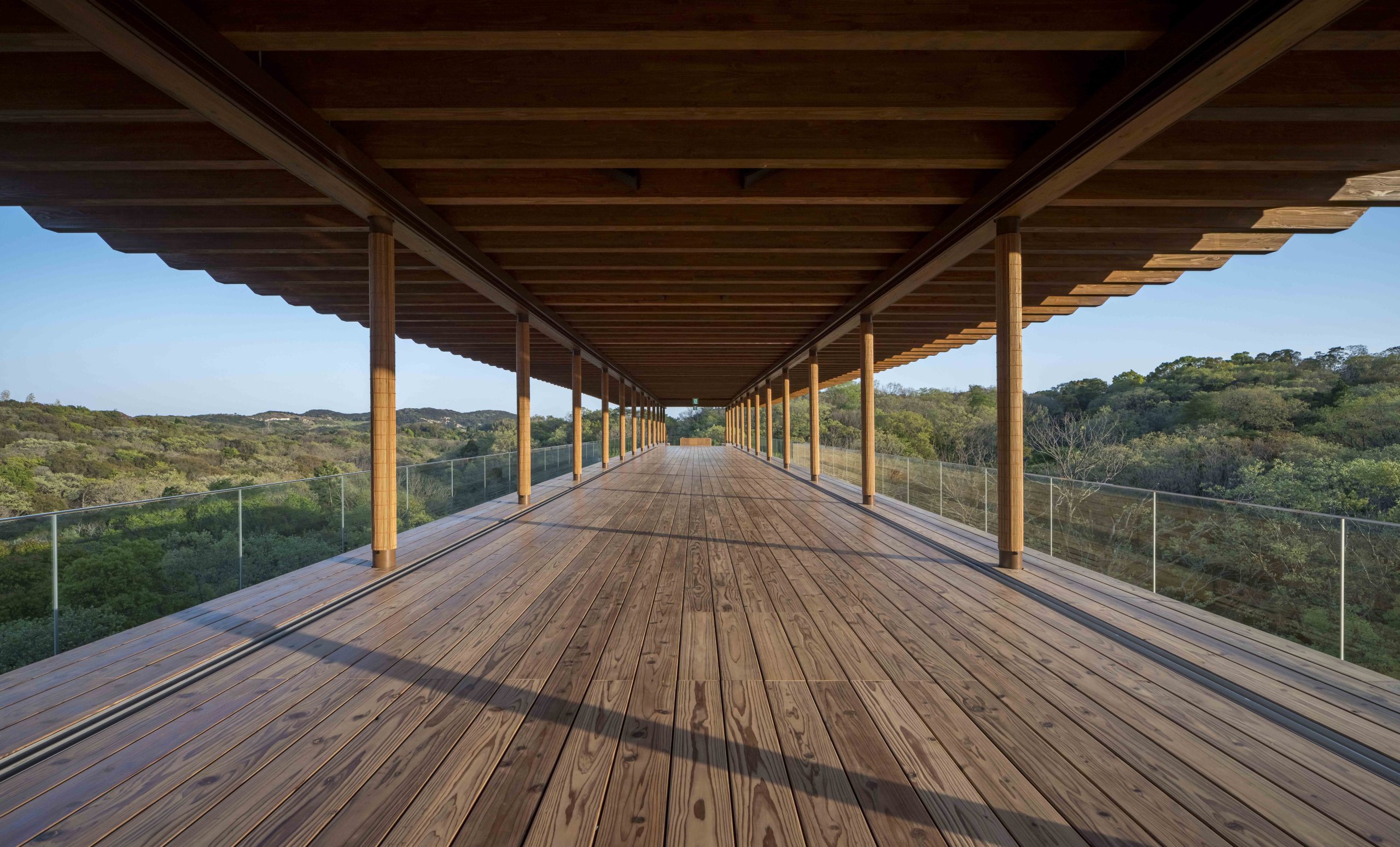

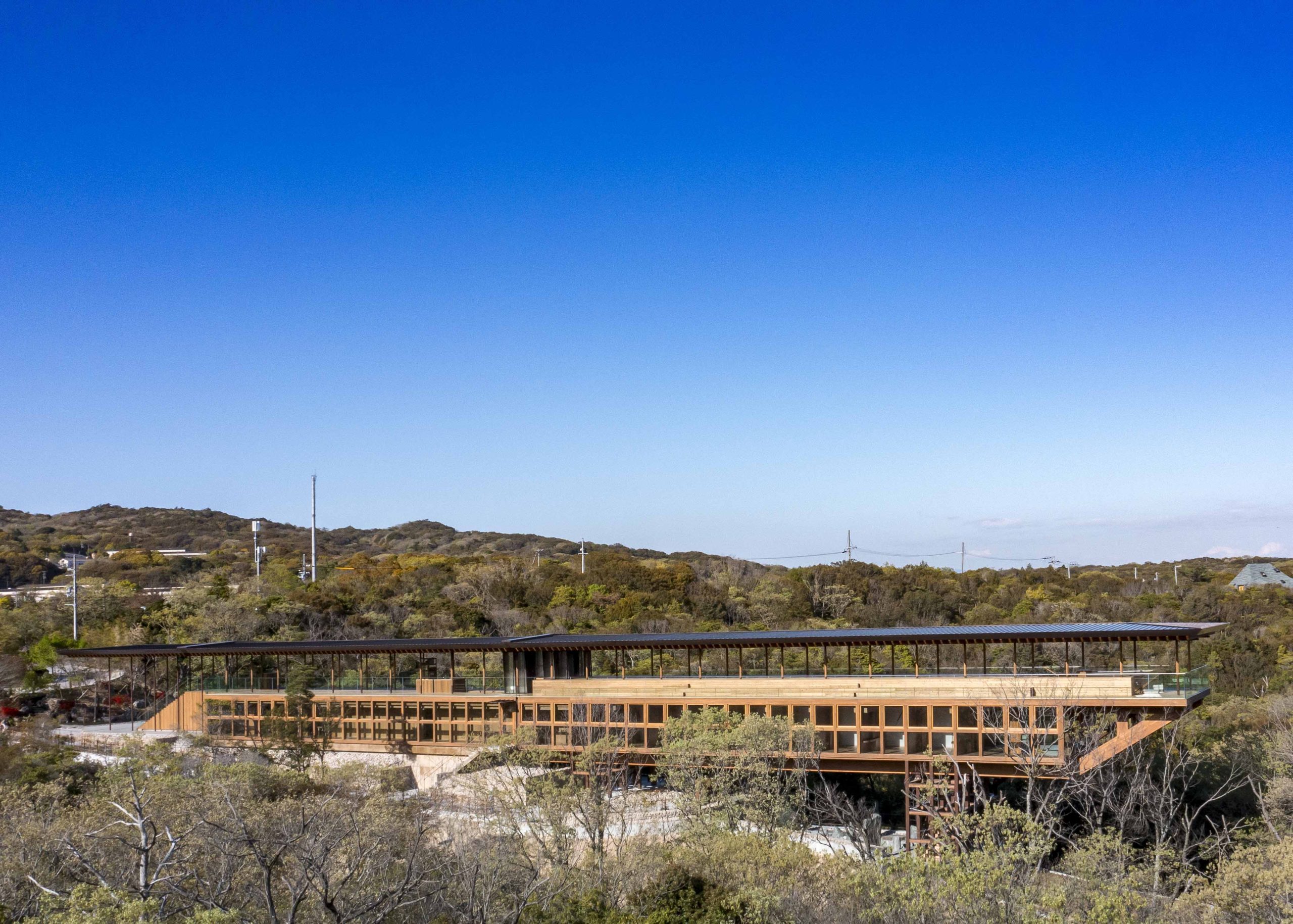

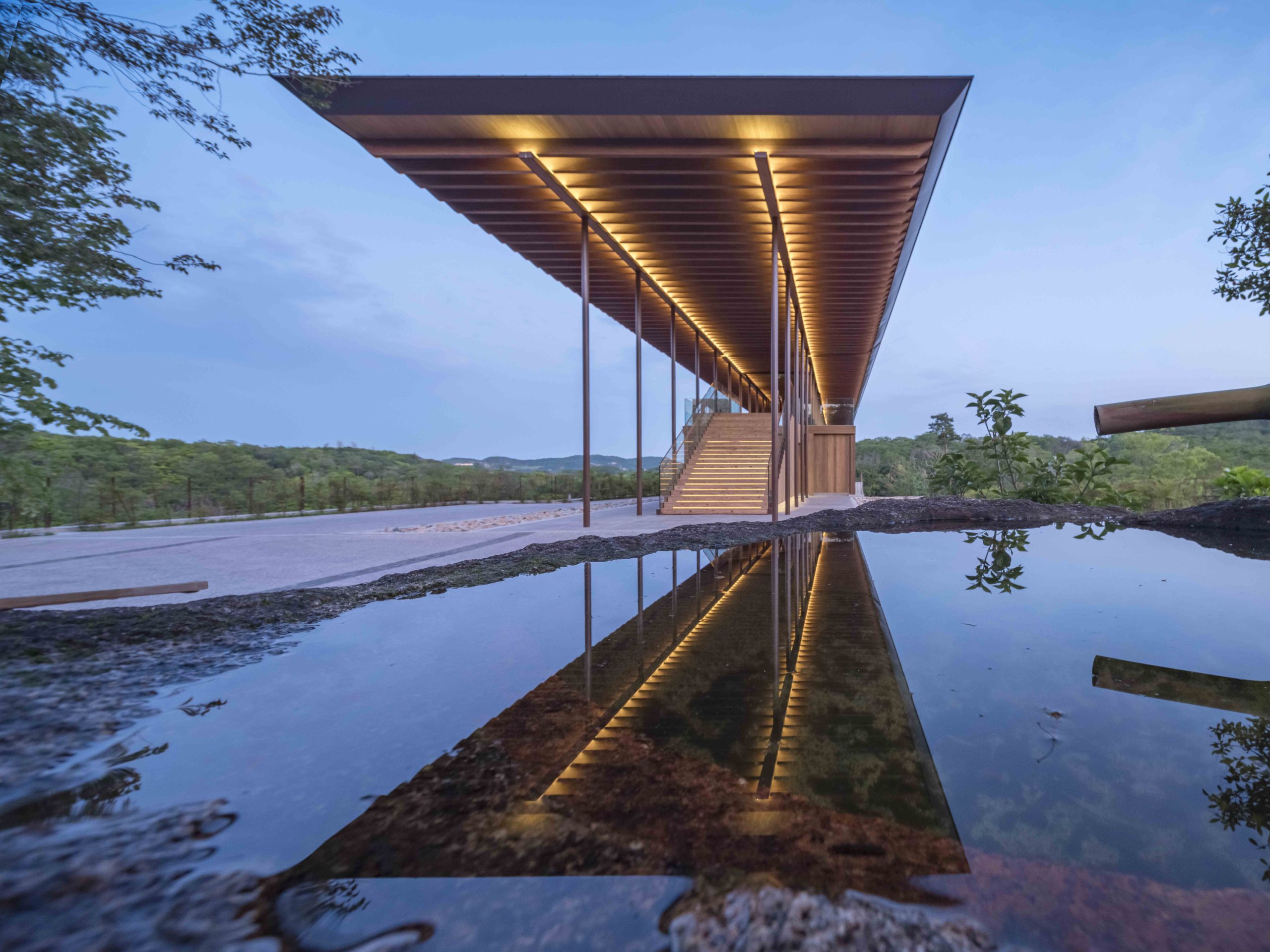

Planned on a small, lush site on Awaji Island, this med to large-scale building is a hybrid structure of wood and steel frames. The building has a shorter end of 7.2m and a longer end of 90m. Half of the building is suspended by two steel lattice column bases with wooden vierendeel on the first floor allowing 21m span. To realize this wooden structure, the connector Node.Rigid for the rahmen joints with Stroog.LSB was used. The connectors were used not only as ready made products, but also customized according to the the fitting structure and bearing capacity required in this case, and its bearing capacity performance was confirmed by Stroog.test.



ZENBO SEINEI
Architectural Design:Shigeru Ban Architects
Structural Design:Design Office Momi+Holzstr
Total Floor Area:982.15㎡
Floors:2 above ground,1 below ground
Structure:Wood+Steel
Building Function:Hotel,Accommodation
Photography:Hiroyuki Hirai



Connectors Used

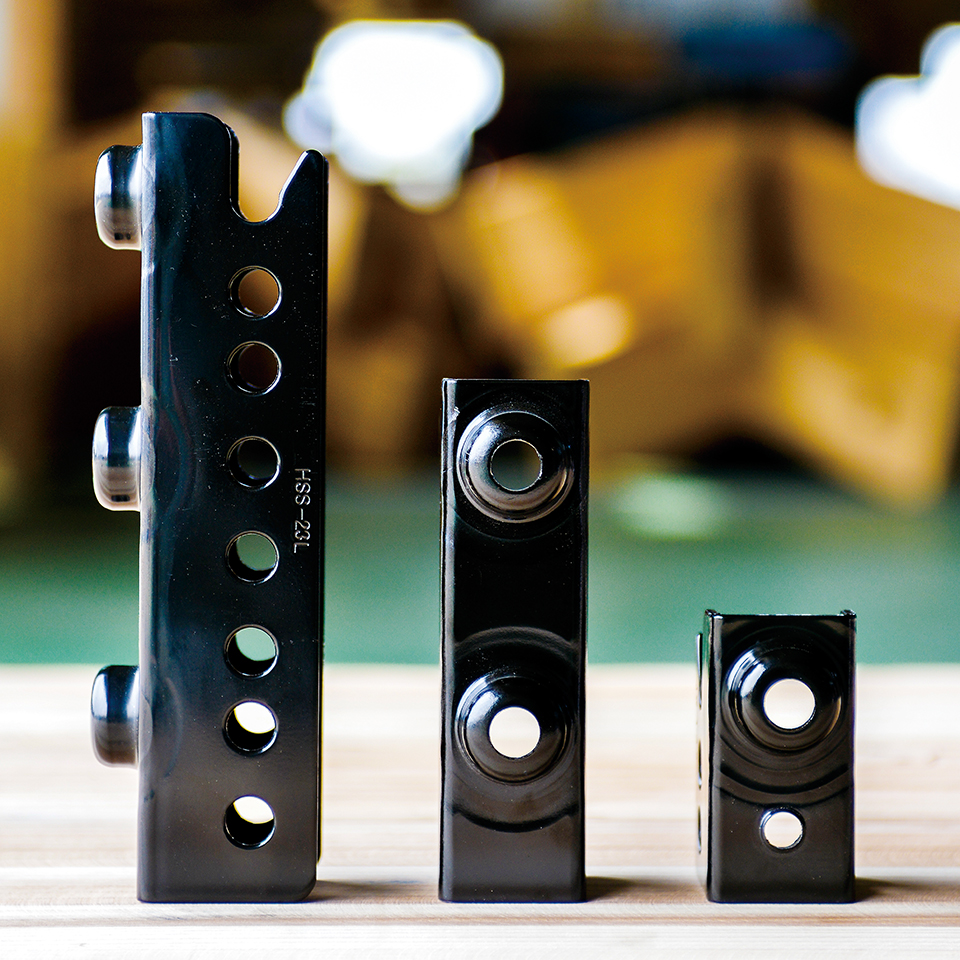

Node.HSS Beam end connector for small-scale structures

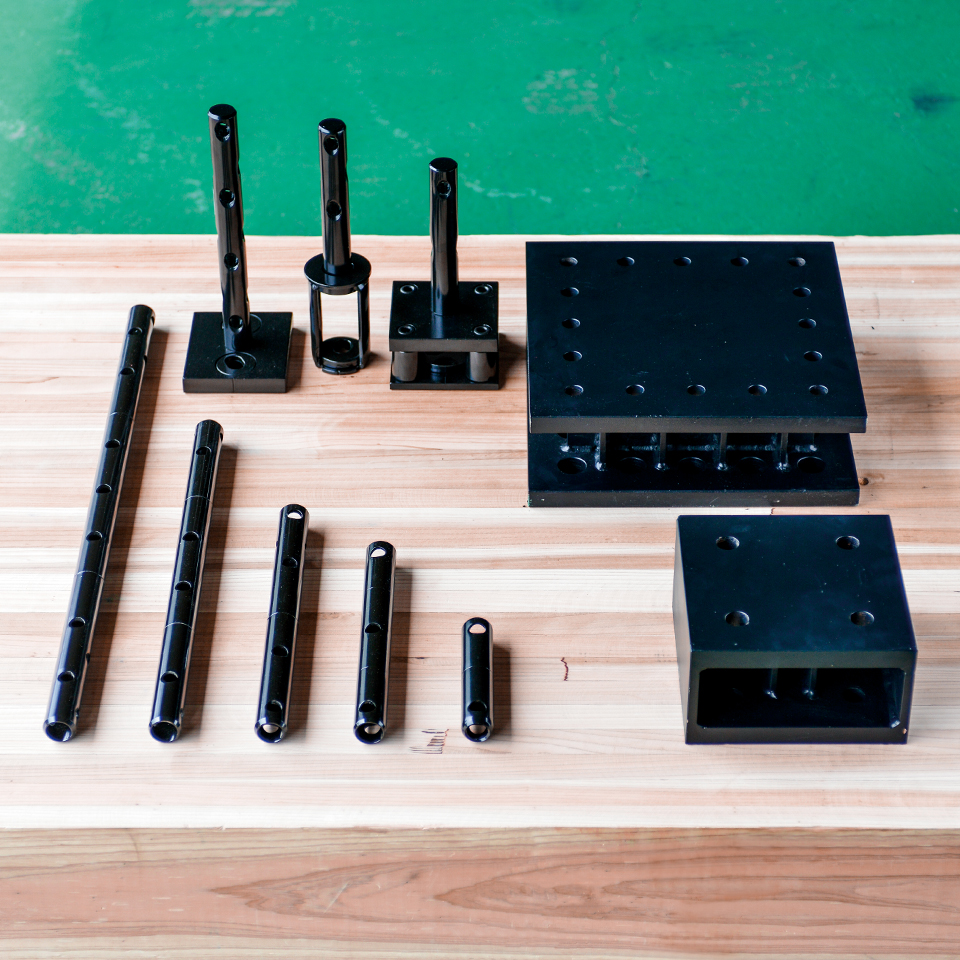

Node.Column Column head and foot connector

NodeFastener
Node.Fastener Configurable for other types of connectors and various fasteners


Node.HSML Beam end connector for mid to large-scale structures


Node.Rigid Rahmen joint connector

StroogLSB
Stroog.LSB Various types of lag screw bolts

Services Used

Stroog.test Strength testing services
